| 브랜드 이름: | Gonghexiang |
| 모델 번호: | SD80-L53X2 |
| MOQ: | 1 세트 |
| 가격: | 협상 가능 |
| 지불 조건: | t/t |
| 공급 능력: | 1 세트/45 근무일 |
Brief Machine Introduction

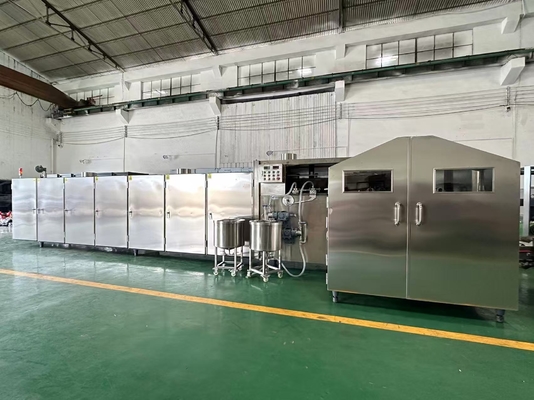

Our SD80-L53x2 Sugar cone baking equipment is built with a durable steel structure and #304 stainless-steel casting, controlled by SIEMENS/DELTA PLC system. With a capacity of 5,500-6,000pcs per hour, it ensures stable production of standard 110mm size sugar cone (in length) for ice cream filling.
By using special choosen heat-resistant cast iron for our baking plates, which provides excellent insulation and reduces gas consumption to as low as 14-16kg per hour. Help our customers save energy and reduce costs
Equipped with two batter injection system, our machine can make both one color cone and two-tone cone. Make customers' products more diverse.
Standard sugar cone size 110mm-115mm, fit for most ice cream market.
The fully automated design streamlines production, reduces manpower costs, and ensures stable product quality.
Machine Model: SD80-L53x2
Machine Technical Parameters
| Product name | Sugar cone,ice cream cone baking machine |
| Model Number | SD80-L53x2 |
| Control System | SIEMENS PLC |
| Input Power | 3.37 |
| Voltage | 380v |
| Production Capacity | 5500-6000pcs/hour |
| LPG Consumption | 14-16kg/hour |
| No. of baking plates | 53pcs |
| Standard Configuration | Batter mixer*1,Heat preservation batter bucket*1,5 meter Conveyor,1.5 meter Storage table |
| Warranty | 1 Year |
| Baking plate size | BIG baking plate 240mm x 320mm |
| Machine Dimension | 11 x 2.1 x 2 (meter) |
| Weight of Machine | 7000kgs |
Sugar Cone Specification
| Cone Length | 110-115 (mm) |
| Cone Angle | 20°-24° |
| Cone Diameter | Depends on the length and angle of your cone |
| Cone Color | Both 1-Color and 2-color |
Customization Service
Our wafer cone machines can be fully customized to meet your specific production needs:
➤ Cone specifications – size, shape, color, and production capacity can be adjusted according to your requirements.
➤ Factory layout solutions – equipment design and conveyor systems can be tailored to fit your plant dimensions and layout, helping you save valuable space.
➤ Flexible design – whether you need higher capacity, special product shapes, or space-saving configurations, we provide the right solution.
Key Points
✅ Standard cone size 110mm-115mm
✅ Fit for both single color cone and two-tone color cone
✅ High capacity up to 6000pcs per hour
✅ Heat-resistant baking plate design for enengy saving
“We are committed to providing reliable equipment and professional service to help our partners grow.”
