Machine Introduction

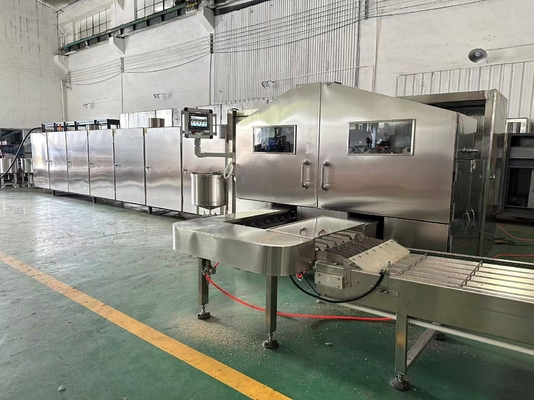

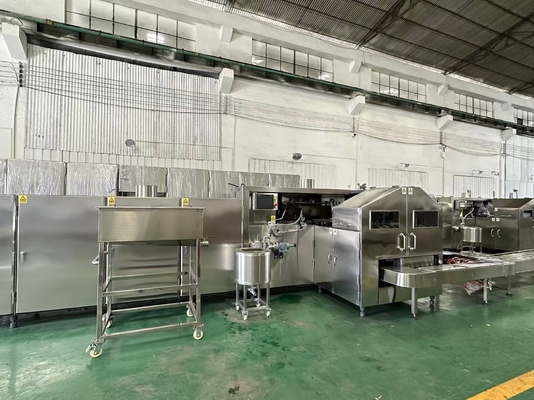

The SD80-R53x2 full automatic sugar cone making machine is designed for efficient and stable cone production. This model integrates the entire process — batter depositing, baking, rolling into cone shape, demolding, and conveying — all completed automatically. With a capacity of 5,000–6,000 cones per hour, it produces consistent sugar cones for ice cream filling.
This machine is suitable for ice cream factories and wafer cone manufacturers that require reliable production of crispy cones. It is also referred to as an automatic sugar cone baking machine, automatic sugar cone production line, or full automatic ice cream cone making machine, making it one of the most versatile solutions for industrial cone manufacturing.
Machine Model: SD80-R53x2
How the machine make ice cream cone automatically?
⚙️ Automatic batter feeding – the prepared batter is accurately deposited onto heated baking plates.
⚙️ Even baking – the batter is baked into thin, crispy wafer sheets with uniform quality.
⚙️ Automatic rolling – baked sheets are precisely rolled into cone shapes by the rolling system.
⚙️ Smooth demolding & conveying – finished cones are released from the molds and transferred onto the conveyor.
⚙️ Easy packaging – cones are automatically delivered for quick manual collection and packing.
Machine Technical Parameters
| Product name | Sugar cone,ice cream cone making machine line |
| Model Number | SD80-R53x2 |
| Control System | SIEMENS PLC |
| Input Power | 3.37 |
| Voltage | 380v |
| Production Capacity | 5000-6000pcs/hour |
| LPG Consumption | 12-14kg/hour |
| No. of baking plates | 53pcs |
| Standard Configuration | Batter mixer*1,Heat preservation batter bucket*1,5 meter Conveyor,1.5 meter Storage table |
| Warranty | 1 Year |
| Baking plate size | 240mm x 280mm |
| Machine Dimension | 9.8 x 2.1 x 2 (meter) |
| Weight of Machine | 6500kgs |
Sugar Cone Specification
| Cone Length | 110-115 (mm) |
| Cone Angle | 20°-24° |
| Cone Diameter | Depends on the length and angle of your cone |
| Cone Color | Both 1-Color and 2-color |
After-Sales Service
✔️ Installation & Training – Professional engineers are available to assist with installation and operator training.
✔️ Warranty Service – All machines come with a standard warranty to cover manufacturing defects.
✔️ Spare Parts Supply – We guarantee timely delivery of spare parts to minimize downtime.
✔️ Technical Support – Our team offers 24/7 online technical assistance and video guidance.
✔️ On-Site Service – If needed, engineers can be dispatched to your factory for troubleshooting and maintenance.
With reliable service and continuous support, we help you keep production running efficiently and worry-free.
“We are committed to providing reliable equipment and professional service to help our partners grow.”
